How Pole Discrepancy Protection Works in a Circuit Breaker?

Since you are visiting my site, I assume you are familiar with the pole discrepancy. But do you know how pole discrepancy works in a circuit breaker?

If you have a clear understanding of pole discrepancy and its circuit diagram, then this post is not for you. But if you have no idea or have doubts about pole discrepancy, then I think this post will help you to clear your understanding.

Read More Posts on This Site

• Substation Commissioning Checklist
• Circuit Breaker Anti-pumping relay working principle

What Is Pole Discrepancy?

In high voltage, a three-phase circuit breaker should operate(open or close) all three phases at the same time. If one or two poles lag or fail to move, then it creates a pole discrepancy fault.

A pole discrepancy relay is used to overcome a pole discrepancy fault.

How Pole Discrepancy Protection Works in a Circuit Breaker?

A pole discrepancy relay continuously monitors the status of each pole auxiliary contact. If the relay detects that one or two poles remain open or closed more than the set time( for example, 3-4s) after the others. It defines this as a pole discrepancy fault.

If a pole discrepancy is detected, then the pole discrepancy relay sends a trip command to open all phases completely.

How Much Pole Time Difference Is Acceptable? (IEC 62271-100)

In the real world, the three poles of a circuit breaker never operate at exactly the same instant. There is always a small time difference between them. This is normal and it is not a pole discrepancy fault.

So, how much difference is acceptable?

The international standard for high-voltage circuit breakers, IEC 62271-100, gives the answer. For breakers designed for three-pole (ganged) operation, the maximum time difference between poles should not exceed:

• 1/4 cycle during closing – that is about 5 ms in a 50 Hz system
• 1/6 cycle during opening – that is about 3.3 ms in a 50 Hz system

Manufacturers verify these limits during type tests and routine tests. During substation commissioning, we also measure this with a circuit breaker timing test. If the pole spread of a breaker is within a few milliseconds, the breaker is healthy.

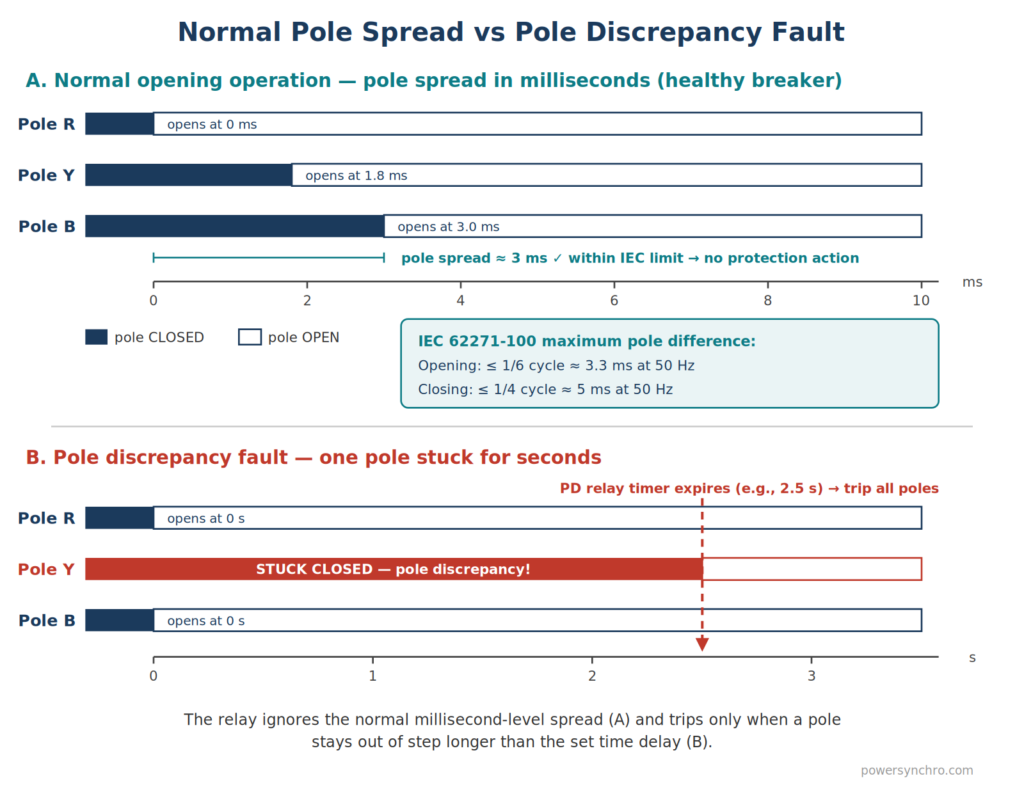

Now you can see the clear difference between two situations:

1. Normal pole spread: few milliseconds only. All poles operate. No protection action is needed.
2. Pole discrepancy fault: one or two poles are stuck in a different position for seconds. The pole discrepancy relay must act.

That is why the pole discrepancy relay always has a time delay. It ignores the normal millisecond-level difference and only trips when a pole remains out of step for a long time (for example, 2.5 s or 3 s).

Understanding Circuit Diagram of Pole Discrepancy Protection

Earlier, I already said that if the pole discrepancy relay detects phase mismatch, then it sends a trip signal to all phases.

In this section, I will discuss the circuit diagram of a pole discrepancy relay. How does it detect phase mismatch? And how does it send the trip command?

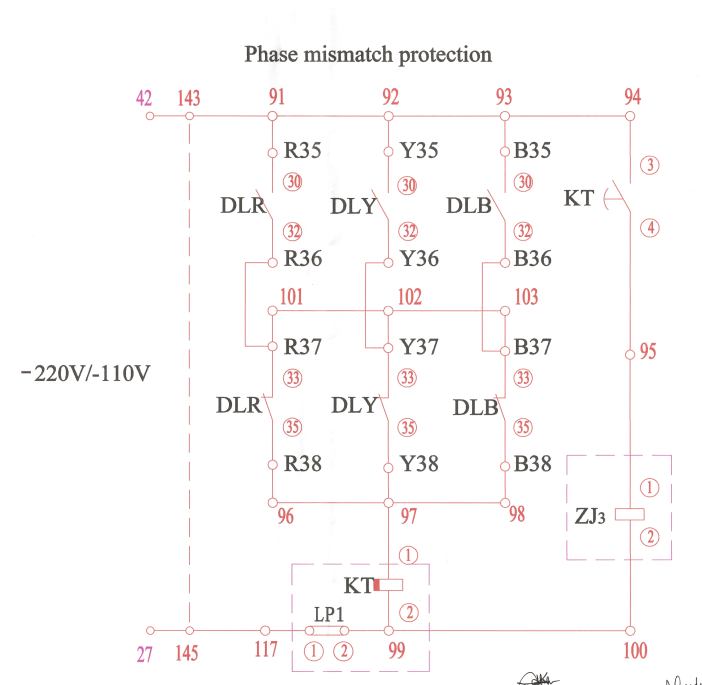

This drawing shows how a pole discrepancy relay detects a pole discrepancy condition.

First, know the meaning of the component code.

Here, KT means pole discrepancy relay(between points 97 and 99) and contact(between 94 and 95).

ZJ3 is open phase relay.

And, DL are breaker auxiliary contacts. DLR for phase R, DLY for phase Y, and DLB for phase B. The above three contacts(between 30 and 32) are normally open contacts, and the lower three contacts(between 33 and 35) are normally closed.

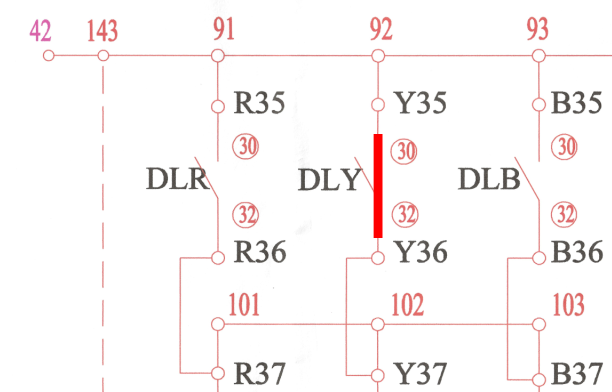

Suppose phase R and B are open, and phase Y is not open(closed). Then the above DLY(Y35 & Y36) contact will make, and DLR(R35 & R36) and DLB(B35 & B36) will remain open, like the figure below.

Now, the points 91, 92, 93, 101, 102, 103 are short, and positive voltage is at 101, 102, 103 through DLY.

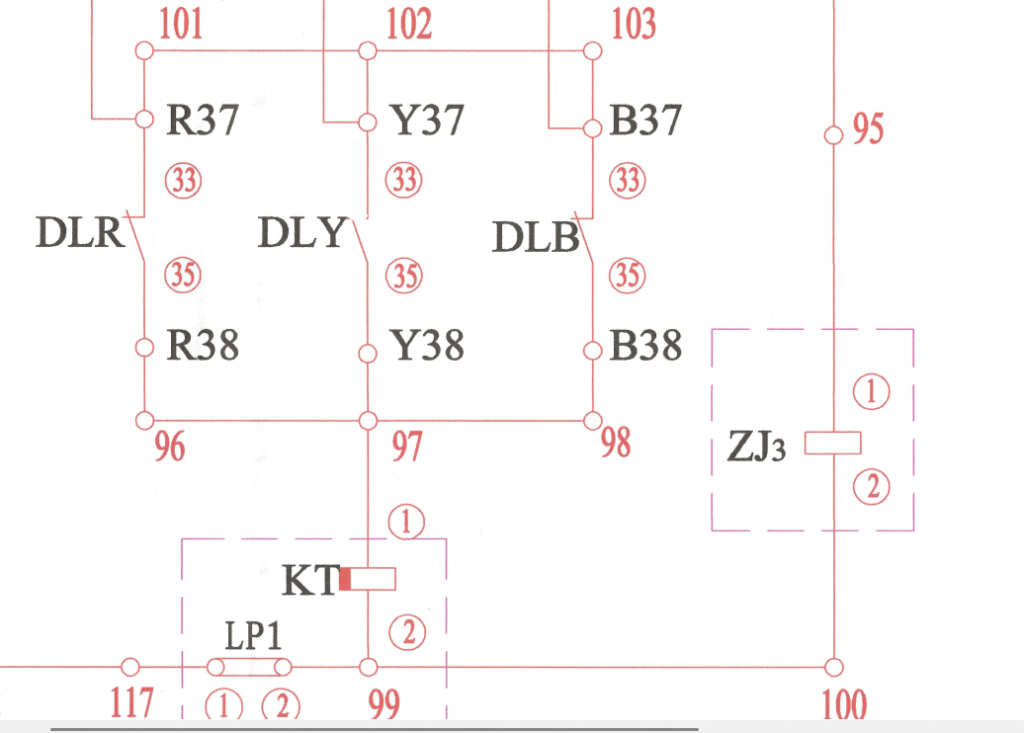

On the other hand, the below normally closed DLY contact will be open as the Y phase is closed. But other normally closed contacts, DLR and DLB remain closed. Then the figure looks like below.

So, the positive voltage will be present at points 96, 97, 98 through path DLR and DLB.

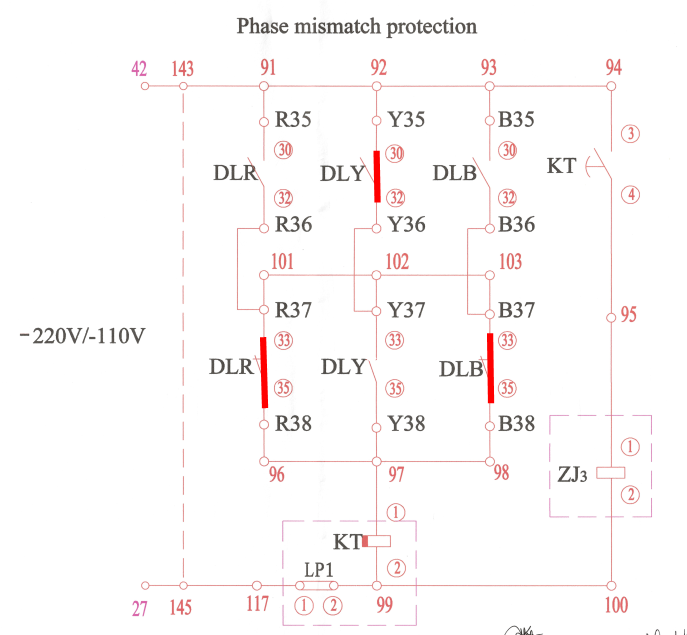

The whole figure at this condition will look like:

Now, the pole discrepancy relay KT is energized by a positive voltage at point 97 and a negative voltage at point 99. It has a set timer(for example, 3s or 4s).

When the pole discrepancy relay (between 97 and 99) is energized, and expires the time delay. It closes the contact KT (between 94 & 95). Then the open phase relay ZJ3 energizes, and it will send a trip command to three phases.

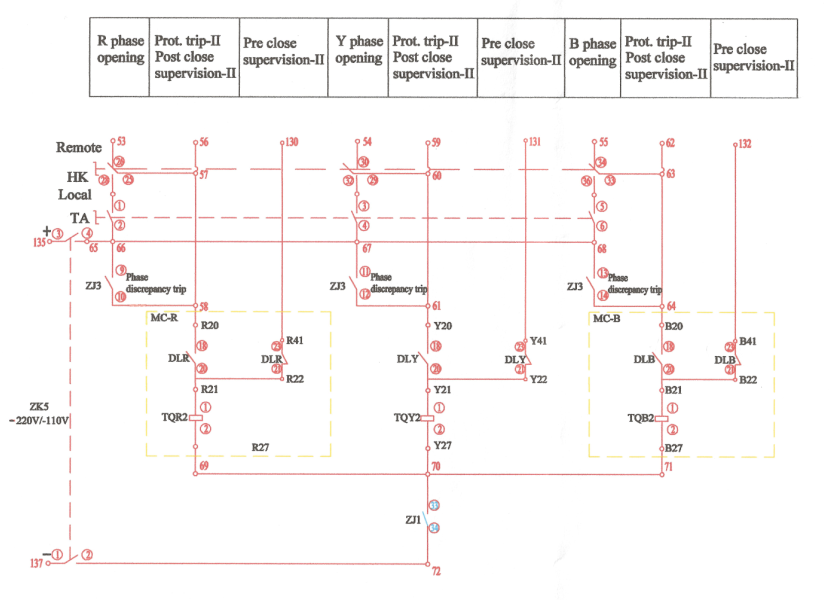

Now, I will discuss how ZJ3 sends a trip command.

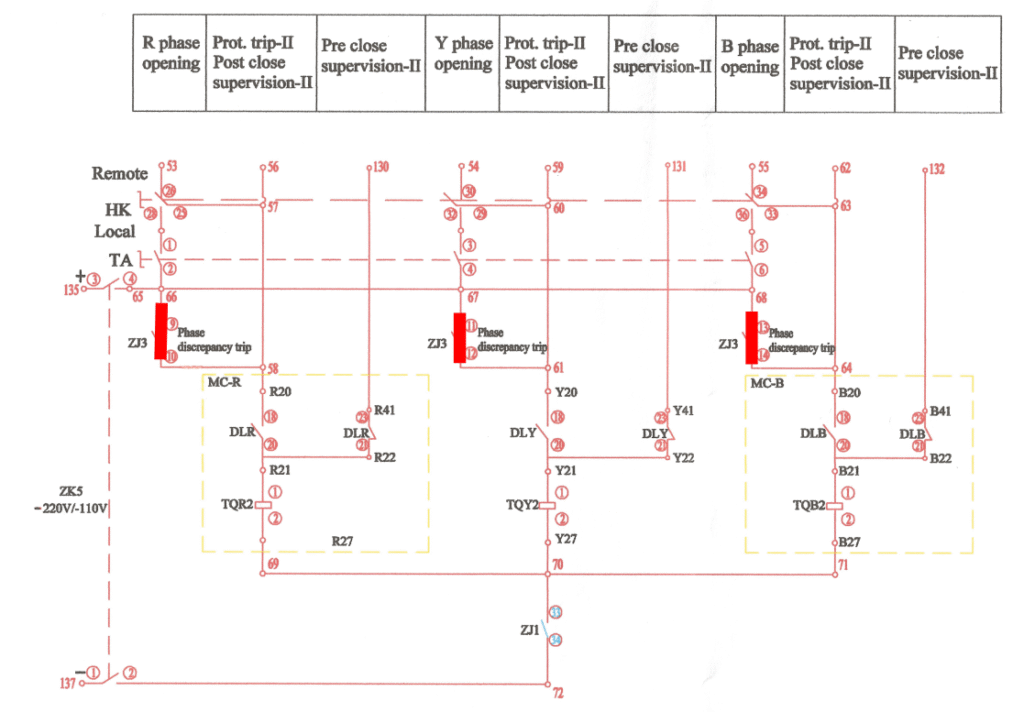

When a pole discrepancy occurs, then ZJ3 is energised and closes the ZJ3 contact. Then the drawing will be:

I have already discussed DLR, DLY, and DLB. TQ indicates breaker trip coil, R for phase R. If ZJ3 makes and the breaker of any phase is closed, then DL of that phase also makes contact, and trip coil TQ gets energised. That’s how the mismatch phase gets opened.

This scenario happens for any kind of phase mismatch, like phase R open and the other two phases closed, then the pole discrepancy relay will trip the other two phases.

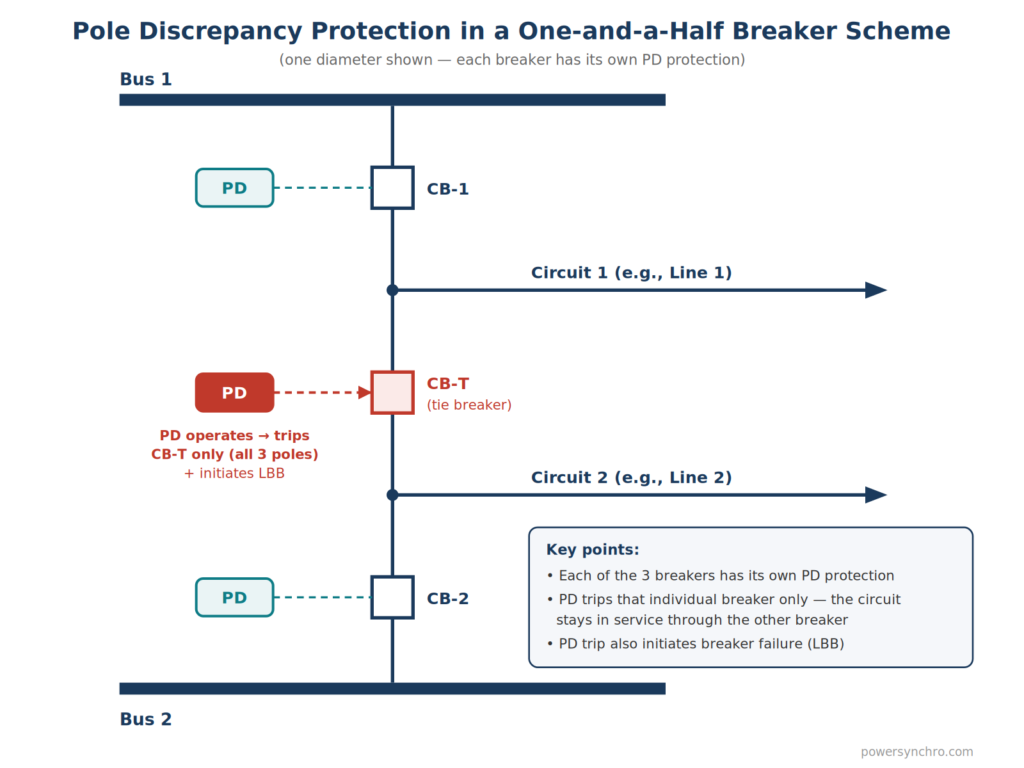

Pole Discrepancy Protection in a One-and-a-Half Breaker Scheme

Till now, I have explained pole discrepancy for a simple single-breaker bay. But many EHV substations (230 kV, 400 kV) use the one-and-a-half breaker scheme. So, how does pole discrepancy protection work there?

First, remember the arrangement. In a one-and-a-half breaker scheme, one diameter has three circuit breakers between two buses, and it serves two circuits (for example, two lines, or one line and one transformer). The middle breaker is called the tie breaker, and it is shared by both circuits.

Here are the important points for pole discrepancy protection in this scheme:

1. Every breaker needs its own pole discrepancy protection. Pole discrepancy is a breaker-level protection, not a line-level protection. So each of the three breakers in the diameter: bus-side breaker 1, tie breaker, and bus-side breaker 2 must have its own pole discrepancy relay. In modern substations, this function is usually built into the bay control unit or the breaker management relay of each breaker.

2. The trip command goes to that individual breaker only. If the tie breaker develops a pole discrepancy, the relay trips the three poles of the tie breaker only. It does not trip the whole line, because the line can still remain in service through the other breaker of the diameter. This is actually one big advantage of the one-and-a-half scheme.

3. The tie breaker deserves special attention. The tie breaker can carry current even when one of the two circuits is out of service. So its pole discrepancy protection must always remain in service, and its auxiliary contacts must be maintained properly during commissioning and testing.

4. Coordination with breaker failure protection. Think about this: pole discrepancy happens because a pole is mechanically stuck. So there is a real chance that the same stuck pole will not open even after the pole discrepancy trip command. That is why the pole discrepancy trip is normally arranged to initiate breaker failure (LBB) protection as well. If the stuck pole still does not open within the breaker failure time, the LBB protection trips the adjacent breakers and clears the diameter.

So in a one-and-a-half breaker scheme, pole discrepancy protection is not a standalone function. It works together with the bay control unit, single-pole auto-reclose logic, and breaker failure protection as one coordinated system.

Why Pole Discrepancy Protection is Important?

Circuit breaker pole discrepancy protection is very important for the power system. Because Phase mismatch can create an unbalanced current in a three-phase system. Besides, it can damage the breaker contact and connected equipment. Also reduces system reliability and protection coordination.

Frequently Asked Questions On Pole Discrepancy Protection

Thanks for your readings. I hope this post adds some value to your engineering learning. I will try to integrate a video explanation on pole discrepancy tripping as soon as possible.
